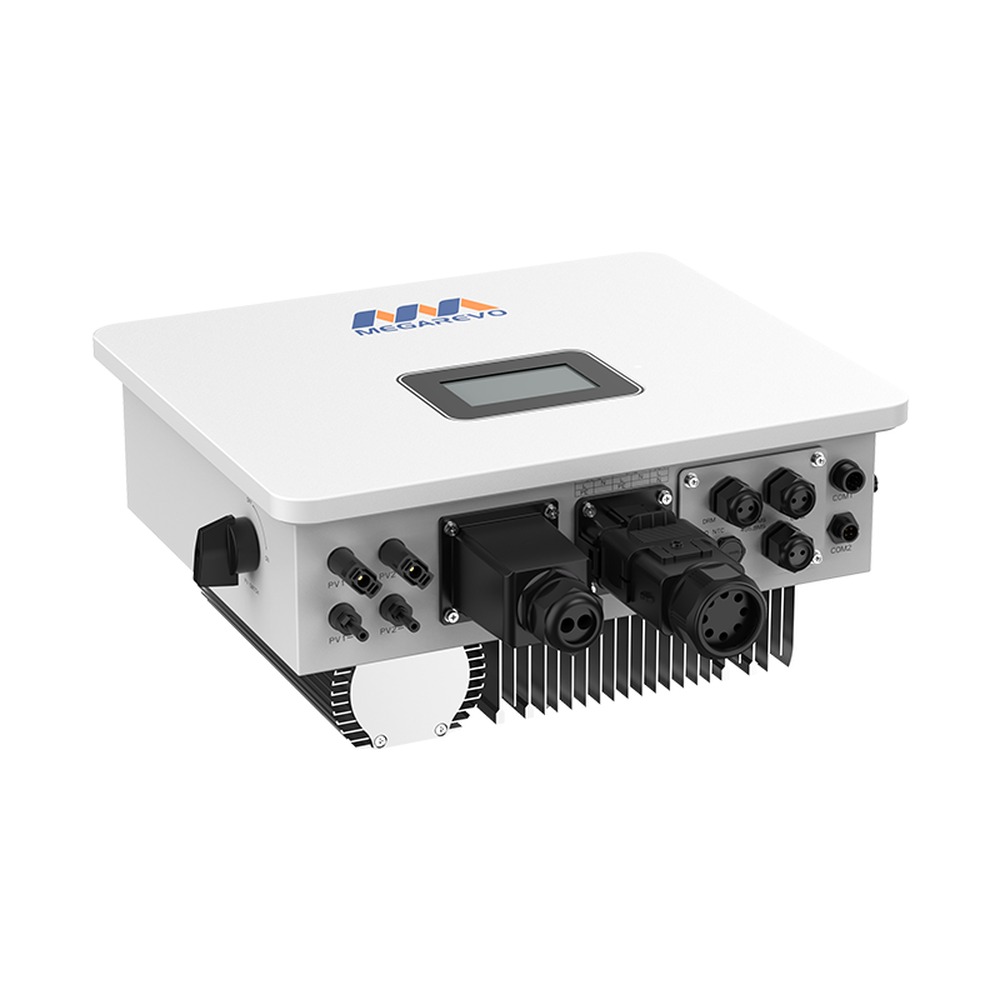

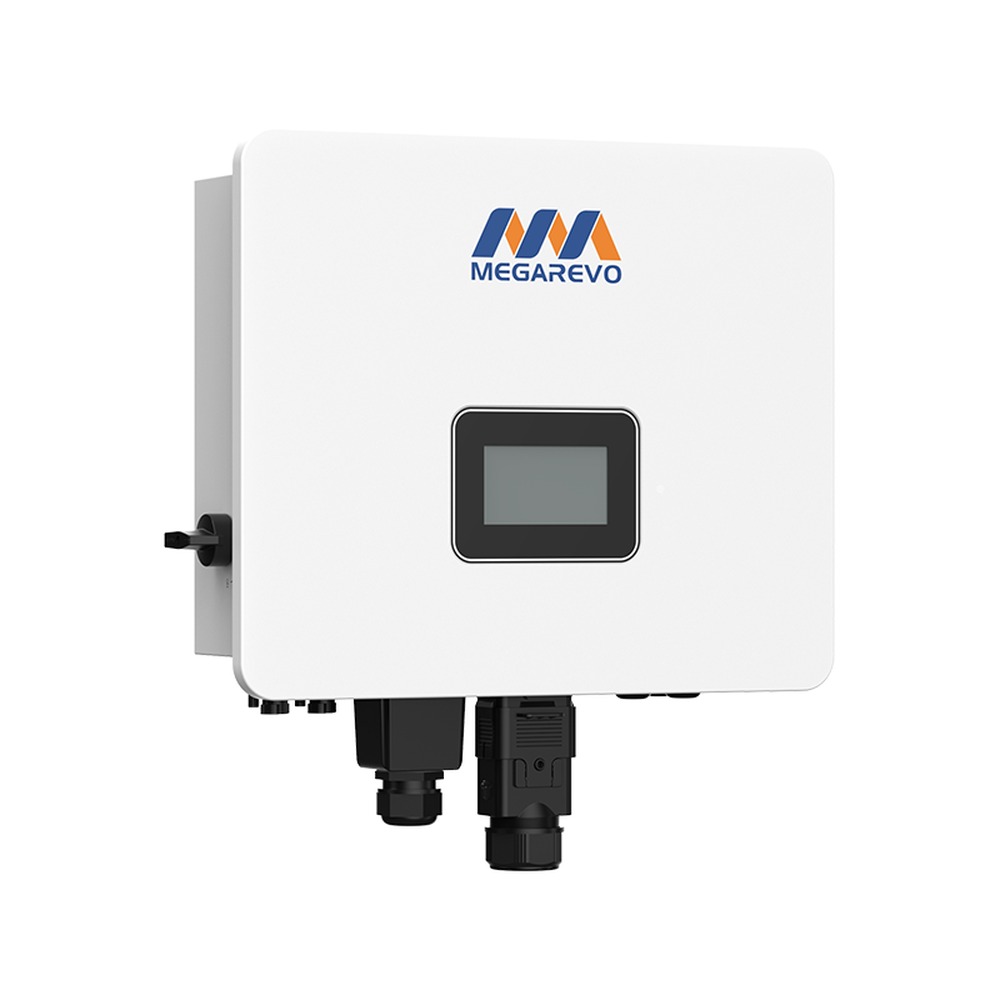

Megarevo R6KL1D-G2SN 6 kW Single-Phase Hybrid Inverter

Single-phase hybrid energy storage inverter from Megarevo’s G2S series, 230 V / 50-60 Hz, for homes and small businesses that combine solar panels, a 48 V battery bank and the grid. Two MPPT trackers (100-430 V, 550 V max), lithium-ion or lead-acid batteries with CAN BMS communication, back-up switching under 20 ms, a generator (DG) input port and an LCD screen. IP65 enclosure for indoor or outdoor wall mounting, European efficiency of 96.5% or more, RS485/CAN communication and Wi-Fi monitoring through an external adapter. Several units can run in parallel.

Key specifications:

• Rated output: 6 kW (6.6 kVA max), 230 V single phase
• Max. PV input: 9 kW, 2 MPPT, 550 V max
• Battery: 48 V (40-58 V), up to 120 A / 6 kW charge and discharge
• Back-up switching: < 20 ms
• Generator (DG) port and LCD screen; Wi-Fi monitoring
• IP65, natural cooling, 476 x 215 x 510 mm, 20.7 kg

Made in China
