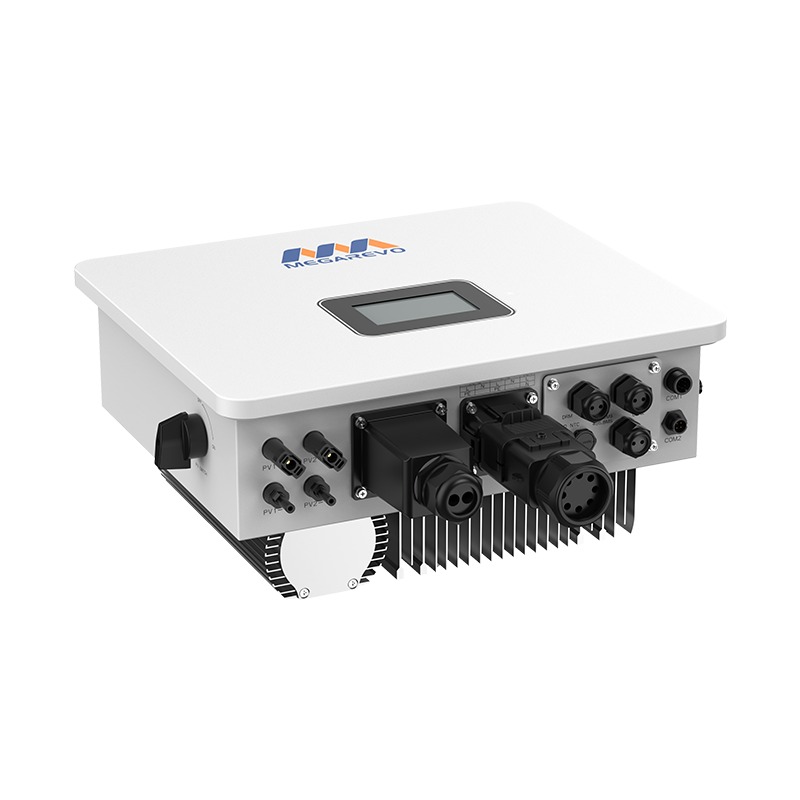

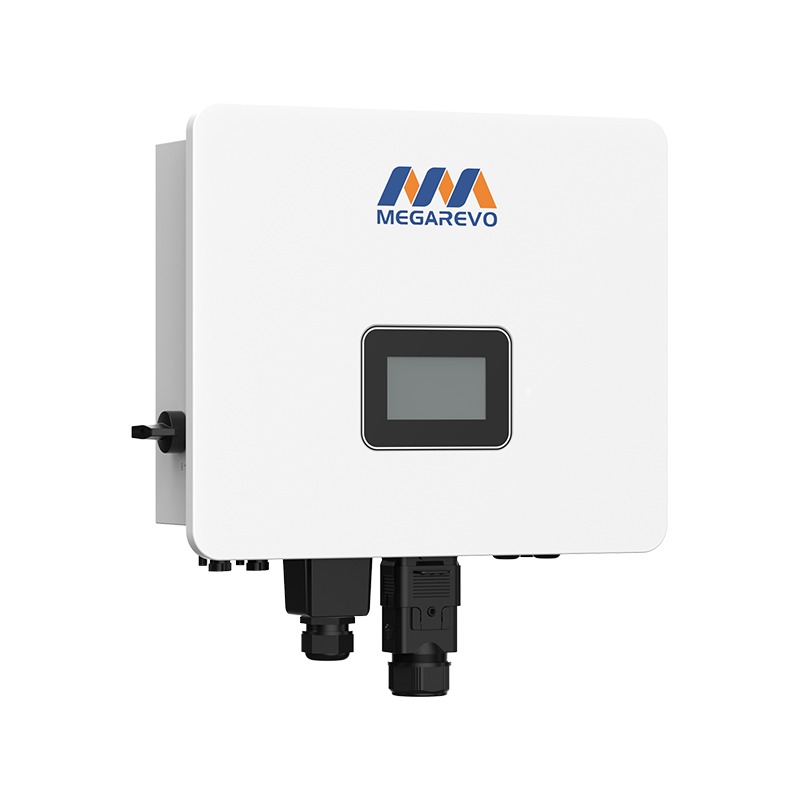

Megarevo R4KL1DA-G2S 4 kW Single-Phase Hybrid Inverter

Single-phase hybrid energy storage inverter from Megarevo’s G2S series (230 V, 50/60 Hz) for homes and small shops that combine solar panels, a 48 V battery bank and the grid. Two MPPT trackers (100-430 V, 550 V max), lithium-ion or lead-acid batteries with CAN BMS communication, back-up switching under 20 ms, a generator (DG) port and an LCD screen. IP65 enclosure, European efficiency of 96.5% or more, RS485/CAN and Wi-Fi monitoring via adapter.

Key specifications:

• Rated output: 4 kW (4.4 kVA max), 230 V single phase
• Max. PV input: 6 kW, 2 MPPT, 550 V max
• Battery: 48 V (40-58 V), up to 80 A / 4 kW
• Back-up switching: < 20 ms
• IP65, natural cooling, 476 x 215 x 510 mm, 20.7 kg

Made in China
