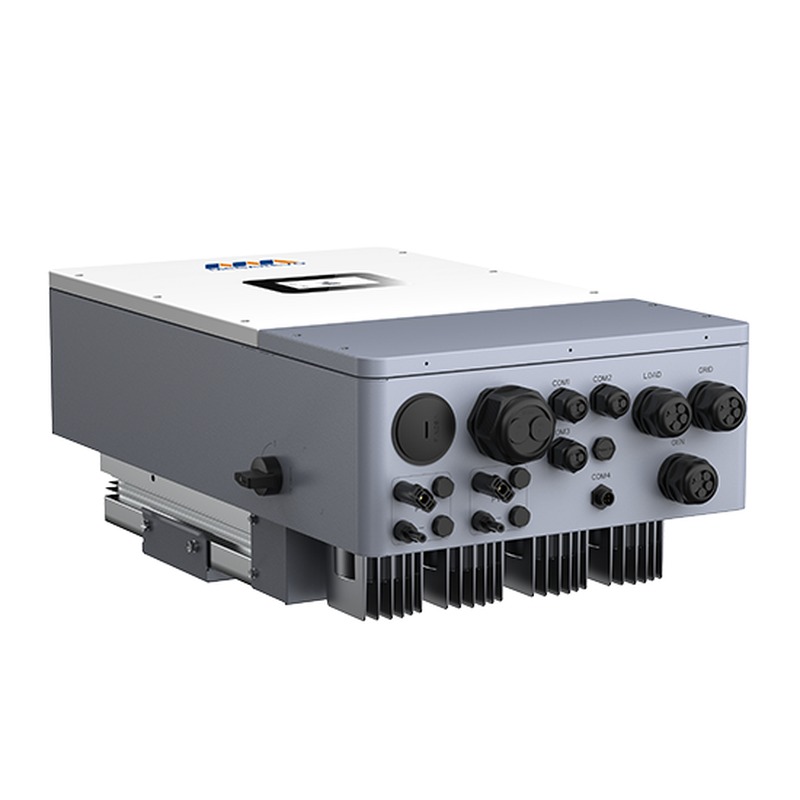

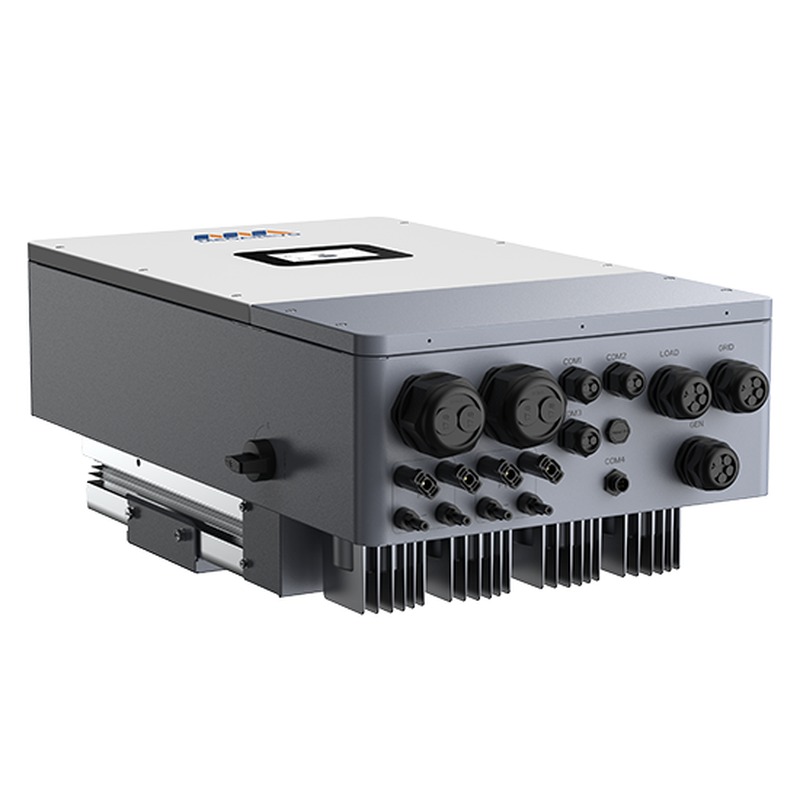

Megarevo R16KL3 16 kW Three-Phase Low-Voltage Hybrid Inverter

Three-phase low-voltage hybrid inverter from Megarevo for villas, farms and small businesses on a 230/400 V three-phase supply, with a 48 V battery bank. Two MPPT trackers (150-850 V, 1,000 V max), back-up switching in up to 10 ms, max. efficiency 97.5%, LCD display, RS485 / CAN / Wi-Fi communication and an IP65 enclosure.

Key specifications:

• Rated output: 16 kW, 220/380 – 230/400 V three phase
• PV: 2 MPPT, 150-850 V, 1,000 V max
• Battery: 48 V (40-60 V), up to 300 A charge / discharge
• Back-up switching: up to 10 ms; max. efficiency 97.5%
• IP65, 420 x 262 x 700 mm, 40 kg

Made in China
