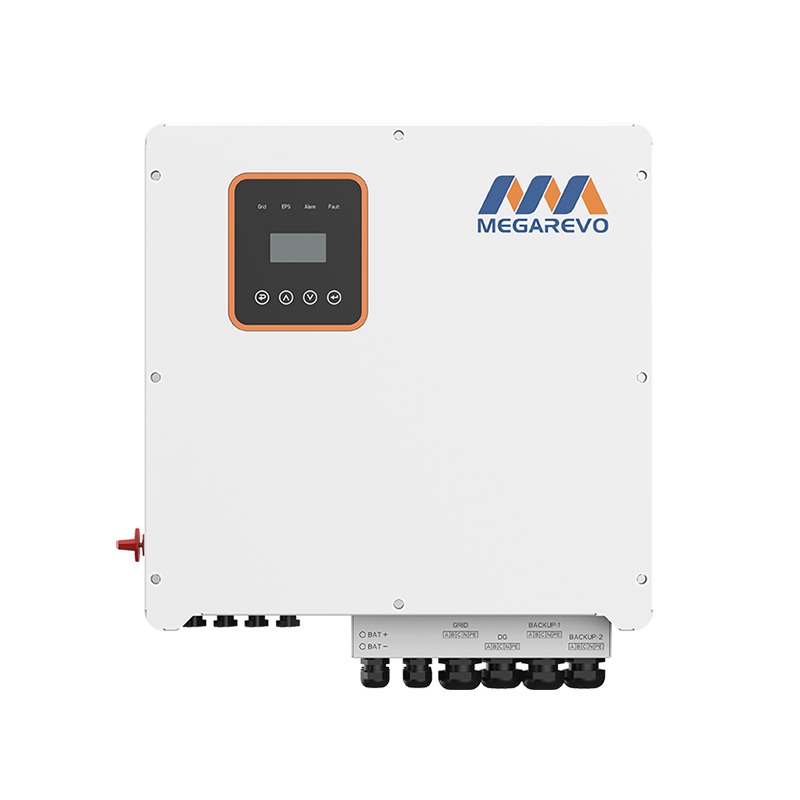

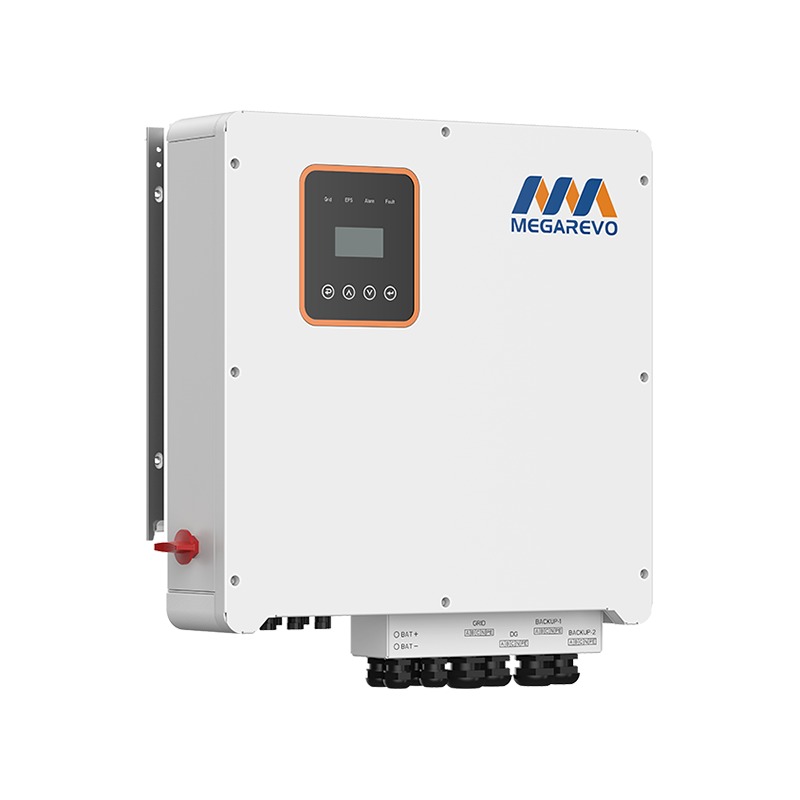

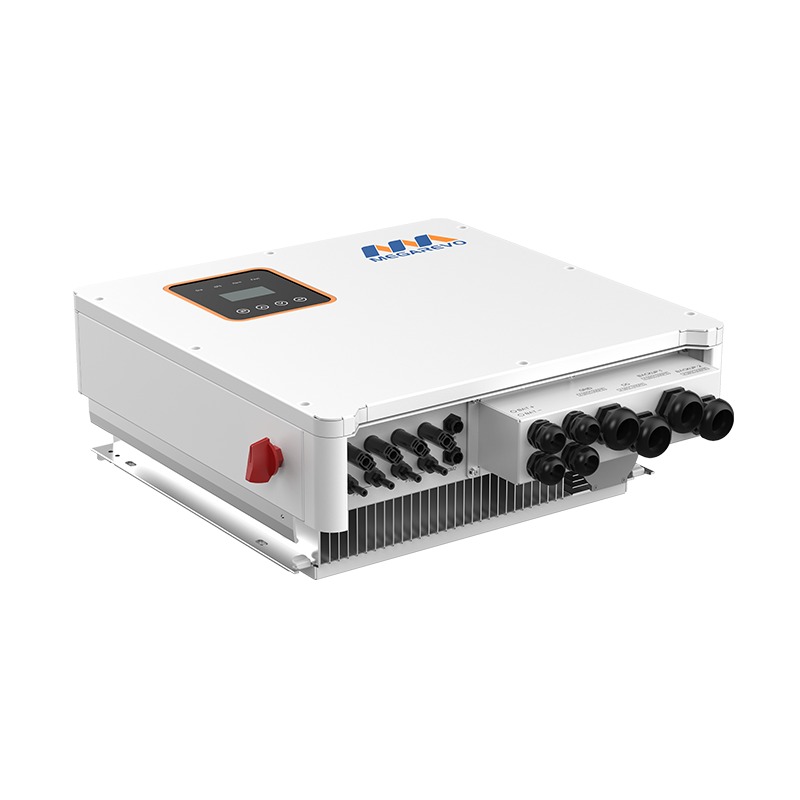

Megarevo R10KH3-P 10 kW Three-Phase High-Voltage Hybrid Inverter

Three-phase high-voltage hybrid inverter from Megarevo’s P series for homes and small commercial sites on 230/400 V. Works with high-voltage lithium-ion or lead-acid battery stacks (150-550 V), two MPPT trackers, back-up switching under 10 ms, RS485 / CAN / Wi-Fi communication and an IP65 enclosure.

Key specifications:

• Rated output: 10 kW, 220/380 – 230/400 V three phase
• Max. PV input: 15 kW, 2 MPPT, 600 V rated
• Battery: high voltage 150-550 V, 11 kW charge / discharge
• Back-up switching: < 10 ms
• IP65, 566 x 593.5 x 219.5 mm, 32 kg

Made in China
