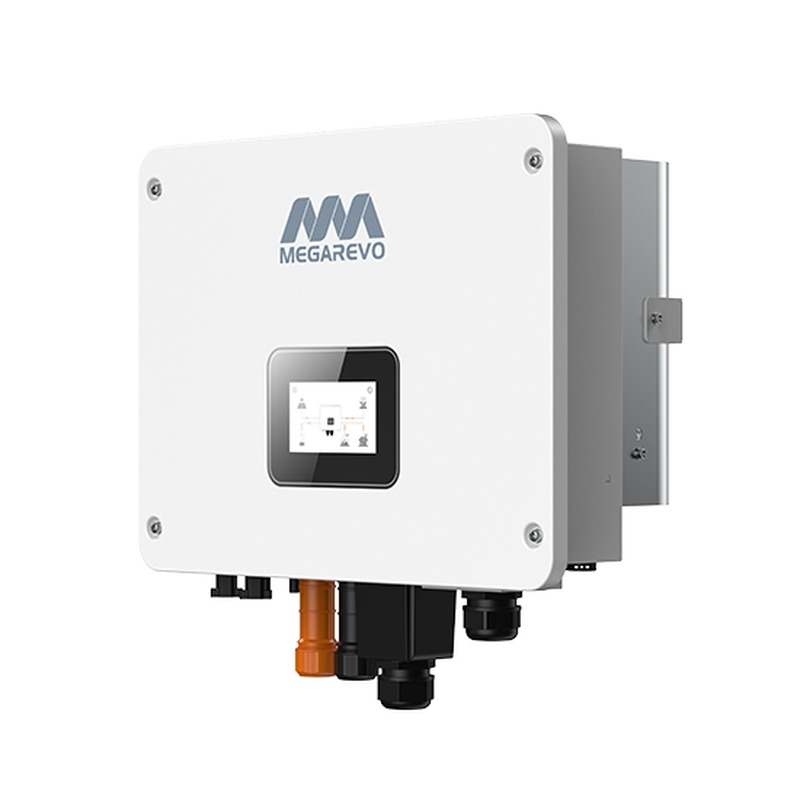

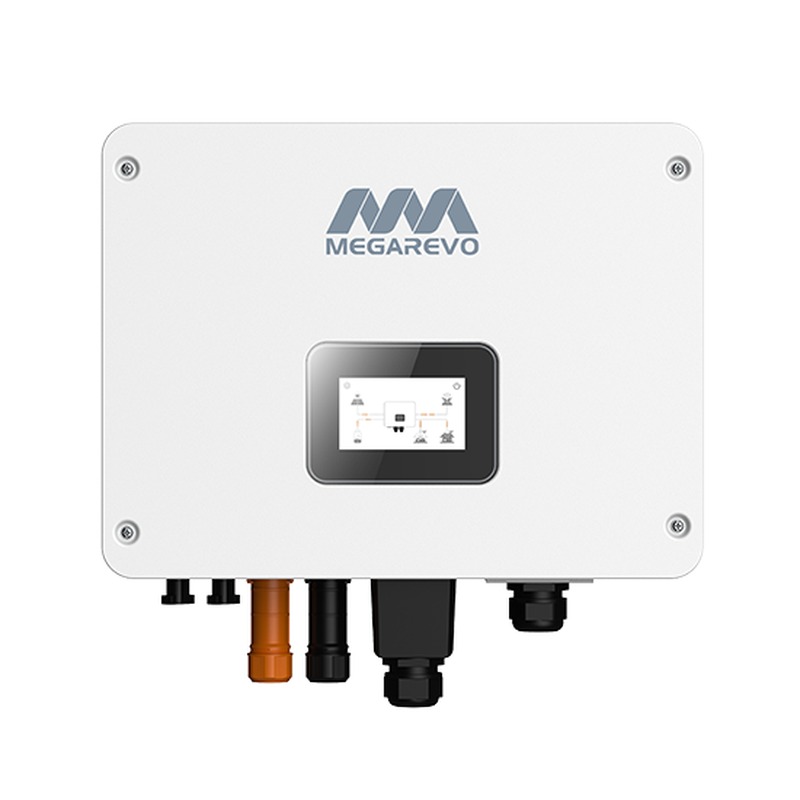

Off-grid solar inverter from Megarevo for sites with no grid or an unreliable one: it runs the loads from solar and a 48 V battery bank, with grid or generator input as back-up charging. Colour screen, 10 ms switching, IP65 enclosure for wall mounting, lithium-ion or lead-acid batteries with BMS self-adaption, RS485 and CAN communication with optional Wi-Fi.
Key specifications:
- Rated output: 6 kW, 230 V single phase, 50/60 Hz
- Max. PV input: 12 kWp, 2 MPPT, 100-430 V, 500 V max
- Battery: 48 V (40-58 V), up to 120 A charge / discharge
- Switching time: 10 ms; max. efficiency 97.4%
- IP65, 455 x 200 x 447 mm, 17 kg
Made in China
