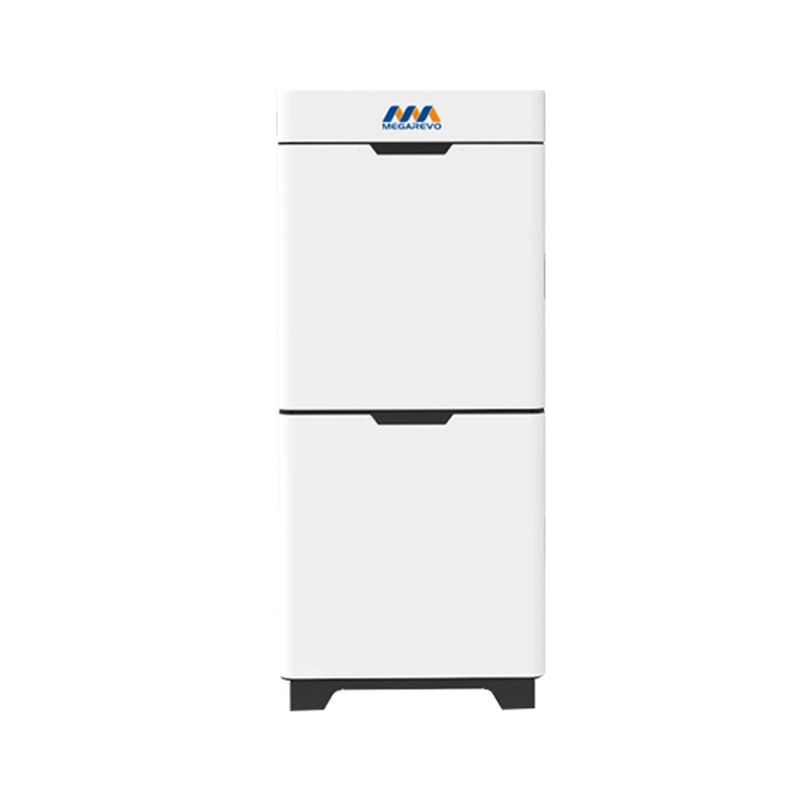

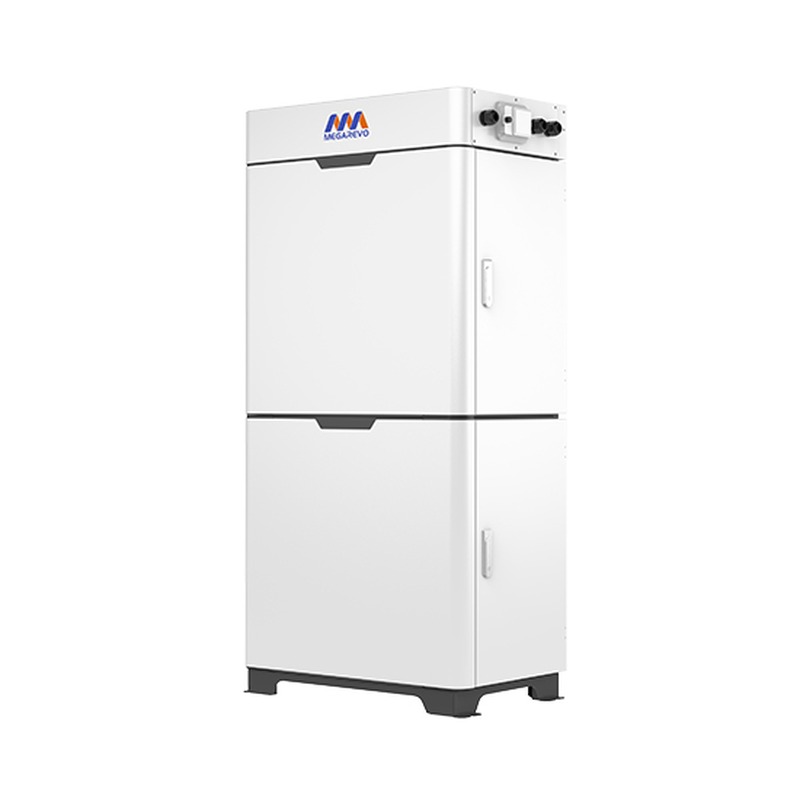

Megarevo E144B048 48 V LFP Battery Cabinet (9.6-14.4 kWh)

Residential energy storage battery cabinet from Megarevo with LFP (lithium iron phosphate) cells and a built-in BMS. 48 V nominal, designed to pair with Megarevo low-voltage hybrid and off-grid inverters. Capacity is configured by the number of battery modules in the cabinet; design life of more than 10 years. Floor-standing, for villas, offices and shops.

Key specifications:

• Energy: 9.6 / 12 / 14.4 kWh (by number of modules)
• Nominal voltage: 48 V; discharge 45-54 V, charge 52.5-54 V
• Max. charge / discharge current: 100 / 120 A
• LFP (lithium iron phosphate) cells with BMS; design life > 10 years
• IP21, floor-standing, 530 x 350 x 1,200 mm, 163 kg

Made in China
